WTK: Rolled edge & Non-rolled edge AKSU buttstocks

2264 Views 16 Replies 11 Participants Last post by Newaza, Aug 9, 2009

wgallc

Discussion Starter · Jul 13, 2008

I know what the difference is, but I don't know the 'correct application' of each.

Can someone give a quick history/timeline & country of use of tye non-rolled & rolled edge buttstocks? Obviously KP guns can have whatever is available...

I want to know why one would be more desireable over the other & when to use.

I'm doing a 103K Saiga & this issue has come up......

Thanks!

1 - 17 of 17 Posts

Flyingjibus

· #2 · Jul 21, 2008

bump for an answer. I would like to know as well.

SteveM

· #3 · Jul 21, 2008

If you are doing a Saiga 103K you should have the Russian 5.5mm hinge pin flat edge/flat buttplate triangle sidefolder to be correct.

Tactical_T

· #4 · Jul 22, 2008

I thought that there were only two different AKSU triangle folding stocks; one Bulgarian and one Russian. :neutral:

lionhart

· #5 · Jul 29, 2008

From what I understand, the early model stocks had a rolled edge which were Soviet produced. The second Soviet variation lacked the rolled edges, as did the Bulgarain triangle stock's. I do not believe Bulagria ever produced a rolled edge stock. If some Bulgarian rifle's had them, they were probably Russian, as some of those interchange with the Bulgarian pin size as well.

steelcore1964

· #6 · Jul 29, 2008

lionhart said:
I do not believe Bulagria ever produced a rolled edge stock.

All the new Bulgi Krink kits I have been getting from K-Var are 4.5 pin rolled edge with ribbed butts.

lionhart

· #7 · Jul 29, 2008

Those stocks are Russian..

At least that's what I've been told from TANTAL.

Bulgaria never produced a rolled edged stock.

I bough six Soviet triangle stock's from K-Var that were Soviet produced, with ribbed buttplates, rolled edged, and took the 4.5 pin.

Blanco_Diablo

· #8 · Jul 30, 2008

My 1984 Tula clone has a rolled edge, ribbed buttplate Tula stock on it. 4.5mm pin. The earlier Krinkovs had the rolled edge struts, while the later Russian ones had straight struts (if I'm not mistaken).

steelcore1964

· #9 · Jul 30, 2008

lionhart said:
Those stocks are Russian..

At least that's what I've been told from TANTAL.

Bulgaria never produced a rolled edged stock.

I bough six Soviet triangle stock's from K-Var that were Soviet produced, with ribbed buttplates, rolled edged, and took the 4.5 pin.

How do you know they are Russian other than Tantal telling you? Not trying to flame but just want to know.

lionhart

· #10 · Jul 30, 2008

K-Var advertised them as Russian when they were selling them separately. . When I was talking with Doug (TANTAL) we got on the subject of these stock's... Apparently, Bulgaria never made any with rolled edges, only Russia did at first, and later switched to the non folded variety. Some had ribbed buttplate's, and some didn't. That's the information that I got. IE-Bulgaria didn't make stock's with rolled edges, but Russia started out doing so, with some that accepted the 4.5 pin for Bulgarain rifle's.

jithaca

· #11 · Jul 30, 2008

Here is a picture of 4 different types.

From left to right

Russian smooth butt with non-rolled strut edges - used on Russian Izhmash made AKS74 rifles and Izhmash made AKSU rifles and some Bulgarian made AKS74 rifles

Bulgarian ribbed butt with non-rolled strut edge - used on Bulgarian made AKS74 and AKSU rifles.

Russian ribbed butt with rolled strut edges - used on Tula made AKSU rifles

Russian ribbed butt with rolled strut edges this variant has more material rolled over on the strut edges - used on Tula made AKSU rifles

The above info is generally what is accept "as gospel" by the western collecting community. I am sure there are exceptions to this but generally is probably correct.

See less See more

heartbreakridge01

· #12 · Jul 30, 2008

i have a rolled edge folding stock, i bought it as a bulgarian side folder for 140$. is there any way to tell its russian other than from what ive read on this thread? like aresnal markings or mold markings?

jithaca

· #13 · Jul 31, 2008

4

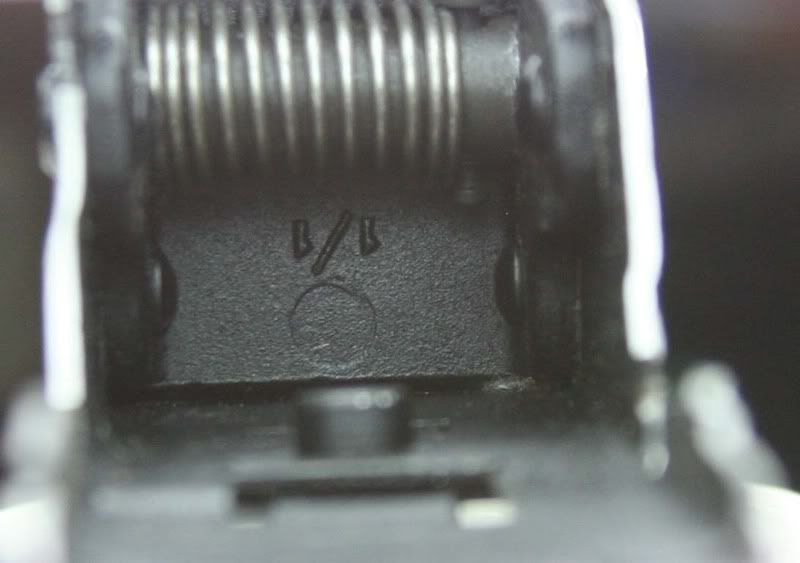

the only ones I have sen with mold numbers are the Izhmash made ones.

The Tula stocks have some proof marrks on the trunnions and the stock assemblies. In addition to the ones in the picture some of the Tula made ones have multiple proof marks on the reinforcement plates where the strut arms come together on the trunnion end.

The thread below (second page) has some pictures of an Izzy made trunnion with proof marks and mold numbers.
http://www.theakforum.net/phpBB2/viewtopic.php?t=61958

See less See more

heartbreakridge01

· #14 · Jul 31, 2008

well after looking my trunion over i didnt find any mold marks, but the stock has a square with a circle in it, a crylic looking A, and some faint circle marks init, im assuming this is a Russian Tula folding stock? it has ribbed butt plate and rolled edges.

jithaca

· #15 · Jul 31, 2008

That sounds correct to me for a Tula.

Morning Wood

· #16 · Jul 28, 2009

Bump so I can check mine tonight and see what I have

Newaza

· #17 · Aug 9, 2009

2

Here is a triangle folder with a ribbed butt and rolled strut edges that I bought from KVAR in June of this year. The mark looks like a large, sloppy, open-top "4" or a sideways "J". Is this Tula?

See less See more
