ПФМ-1, short for противопехотная фугасная мина

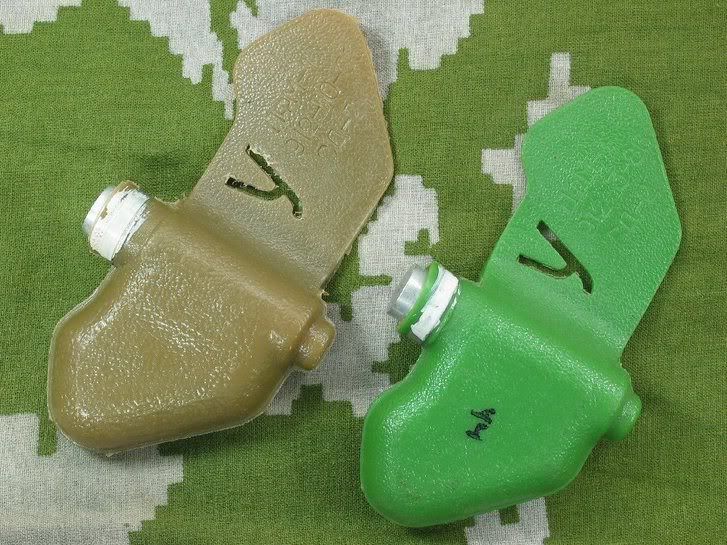

These are the two examples of each model in my collection. The earth olive tone dated 1983 is the PFM-1. The grass green tone dated 1986 is the PFM-1S. This one is the self destruct variety designated by the cyrillic C cast on the backside of the wing.

Although these examples are totally inert and filled with an oil to represent the liquid exsplosive, it makes you think when hearing it swish around inside, at least to me.











For those not familiar with this mine, here is info taken off a mine website...

PFM-1 is a small, scatterable Anti-Personnel (AP) mine with a body made from low-density polythene. It comes in two varieties, both identical in external appearance other than a Cyrillic C (English S) cast into the plastic on one side of the flat wing. The PFM-1S version incorporates a self-destruct mechanism. In the centre of the mine is a cylindrical fuze made mostly of aluminium; the remainder of the bulbous section of the mine is filled with a liquid explosive. The fuze is sealed into the plastic casing by a metal compression band, with the end of the fuze protruding a few millimetres. The fuze operates hydraulically using the liquid explosive from the bulb. When the mines are packed together in their dispenser, metal strips run through slots in the end of each mine's fuze to retain an arming plunger. The current dispenser is designated KSF-1s; it holds 64 mines and ejects them explosively using the electrically initiated EKV-30M system. Mine laying system options include the PKM, VSM-1, UMZ, RSZO and ASM. These mines are manufactured in a variety of colours, including green, brown and white; some markings are stencilled in black, while others are impressed into the plastic.

Operation

When the mine is ejected from its dispenser, the strip is pulled out from the slots in the end of the fuze, freeing the plunger. This plunger, pushed by a spring at the far end of the fuze, moves through a viscous silicon gel, rotating the detonator into line to arm the mine. After this arming delay (1 to 10 minutes), pressure on the bulbous portion of the mine forces the liquid explosive into the base of the hydraulic fuze. An internal sleeve is moved up until the striker retaining balls are allowed to escape into a recess, releasing the spring-loaded striker onto the internal stab-sensitive detonator. In the PFM-1S, this firing action will be initiated by a spring-actuated viscous delay mechanism between 1 and 40 hours after arming.


·
Premium Member
Joined
·
4,285 Posts
Thanks for posting, Very interesting. I've seen them but never knew anything about them, are they air dropped or is it a mine that is burried?


·
Registered
Joined
·
1,046 Posts
those would be awesome for any collection..can I ask where you found those beauties?


·
Registered
Joined
·
1,046 Posts
well you have some awesome stuff for sure..make mine look like crap :hail:


·
Registered
Joined
·
3,287 Posts
Discussion Starter #7
:oops:

thank you plumber but I have to politely disagree....your shoulder fired weapons especially that mint looking RPG-7 has all my liitle "rocks" beat.


·
Registered
Joined
·
2,182 Posts
Weird - so you step on the bulbous part and it goes boom(?).


·
Registered
Joined
·
2,509 Posts
Nasty fuckers, Had an Afganny friend in college who's grandfatehr lost a leg to a mine in Stan. He had no clue what is was but my money was always on the "butterfly"

He was not a fighter but a farmer.


·
Registered
Joined
·
43 Posts
Nice photos! I have one but it hasn't got the letter cutout on the wing. I was told the cut out letter that looks like a "Y" meant that these were inert training dummies, is this the case?

Wolf


·
Super Moderator
Joined
·
26,256 Posts
There is still an assload of those in Afganistan from reports I"ve read. I also understand there were alot of Afgan children that were injured/killed by this ordnance as they were mistaken for toys.
Troops we train that go play in that part of the world get a brief on those mines, and how hard they are to detect. Great examples man...wish I could get one!


·
Registered
Joined
·
3,402 Posts
Is this the type of mine that was in 9 ROTA when they were climbing the mountain and the trooper almost stepped on it?
What's the LxHxW of these?


·
Registered
Joined
·
6,129 Posts
They used to be pretty easy to find around here, at Bagram. I even found an inert trainer once.


·
Registered
Joined
·
6,129 Posts
Where can you get an inert "S" model?

Here at Bagram the guy who ran the MOUT site looked out his bedroom window and realized there was a PFM sitting right outside his window. We'd been finding inert trainers, but this one was real.
