[Mandalorian94]

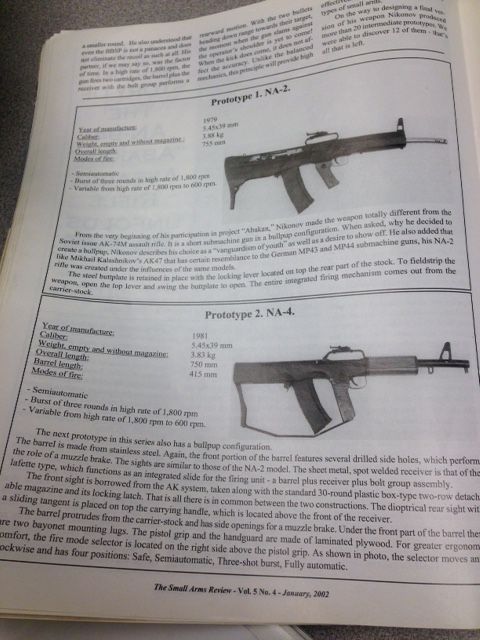

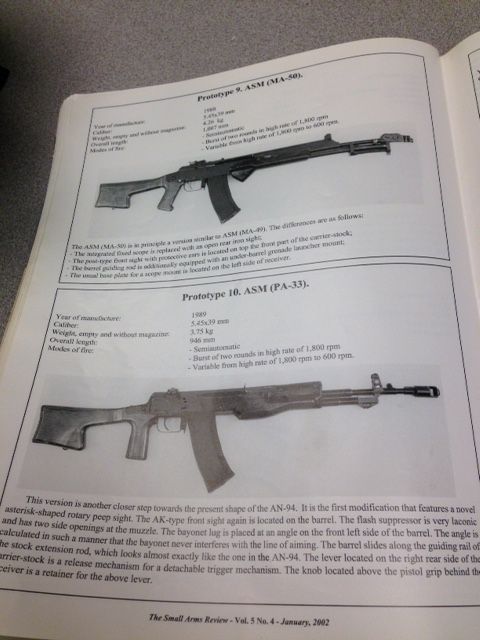

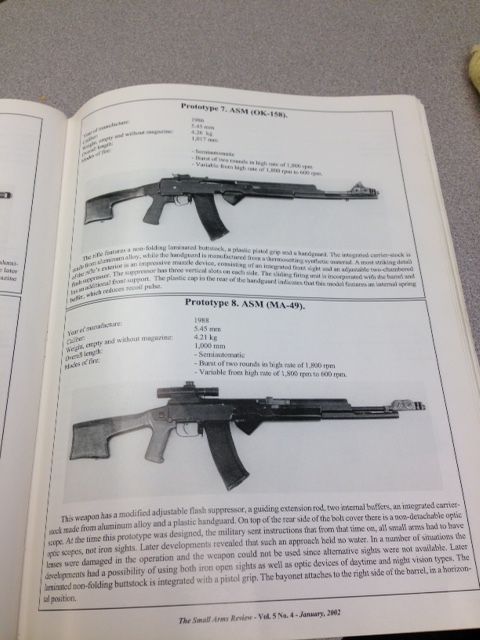

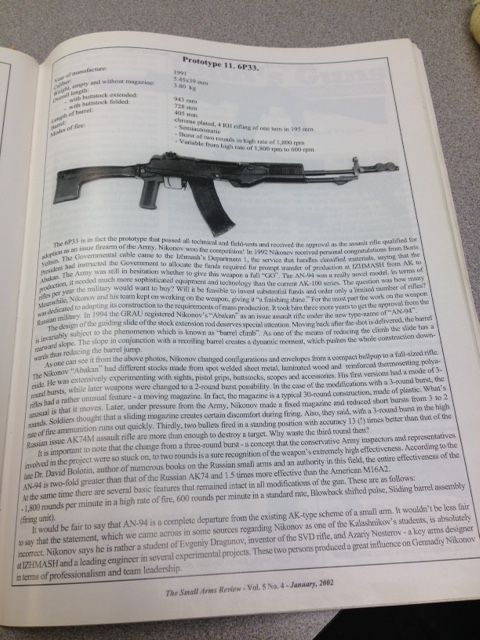

My manager recently found out I was into Combloc guns and handed me an issue of "Small Arms Review" from 2002. There was an article in it I though was interesting that showed the prototype phases of what we now know as the AN94. I know its not a traditional Kalashnikov but I thought some of you would find it interesting. I didnt have much time to read it but I did take pictures of all the prototypes. The descriptions are pretty interesting. The order of the pictures should be the order the prototypes were developed in. Anyways, I hope you enjoy. Sorry if the pictures are too small or blurry.



[BR7.62]

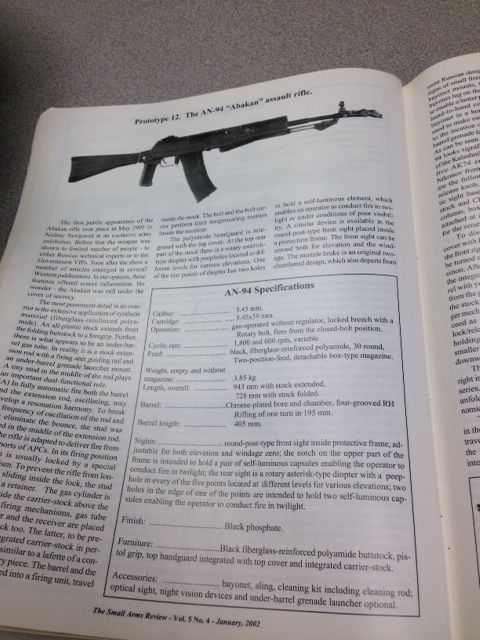

12 looks like what made it huh?

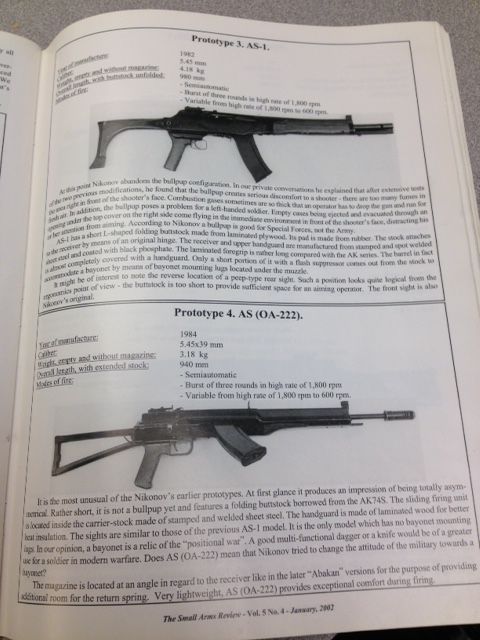

4 looks like the mag is angled?



[22many]

Prototypes are so cool! Even if the mag sticks in the side of one gun and the FSB is backwards in another.

Just really cool ideas!



[Tantal]

The mag is angled on the AN-94, just not to that extent.



[Mandalorian94]

Yup. Its angled to make room for the part of the recoil system.

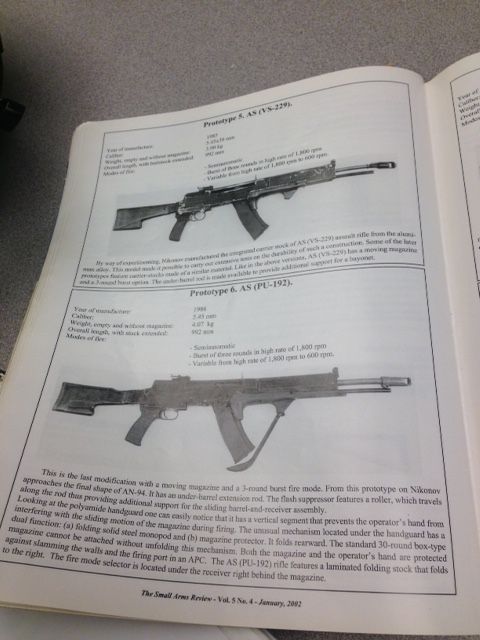

I think #6 is especially interesting because the magazine actually moves back and fourth while firing



[BR7.62]

really? that's wild.
was just reading about the uk-59 and how the handgrip is used to cock the gun/clear jams w/out taking hand off not that its the same but...
neat functions.
would love to go to museums in Russia.....



[KMFDM]

Interesting concept weapon it seems the execution did not live up to expectations unfortunately...
